Overload Protector

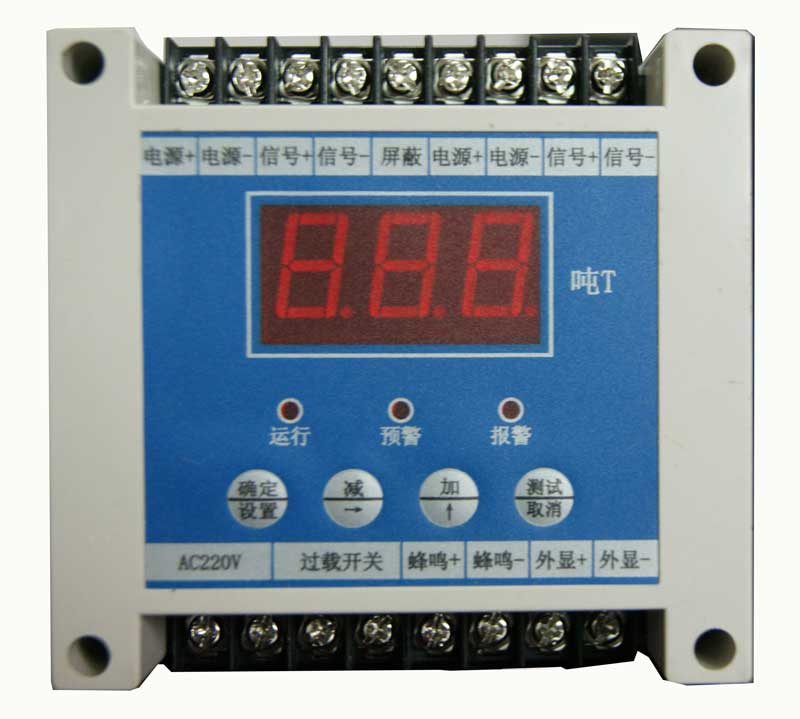

CZ-3195 overload protector (also known as elevator limiter) is a protective control instrument designed mainly for construction elevators, tower cranes and other lifting equipment to prevent danger caused by overload, resulting in personal injury and property damage. Adopting a guide rail design for easy installation. Using high-precision AD conversion chips, the acquisition accuracy is high and the processing speed is fast.

Pre alarm when the weight is 90% of the full range

When the weight is 105% of the full range, a delayed alarm will be triggered

When the weight is 130% of the full range, an alarm will be immediately triggered, and normal operation will resume when the weight drops to 100% of the full range after the alarm

◆ Can be connected to an external large screen

◆ Can be connected to an external buzzer

Power supply: AC220V/50HZ

Relay contact capacity: 2A/AC220V, normally closed

◆ Dimensions of the casing: 315 × 300 × 190mm (length × width × height)
