Instrument technical parameters

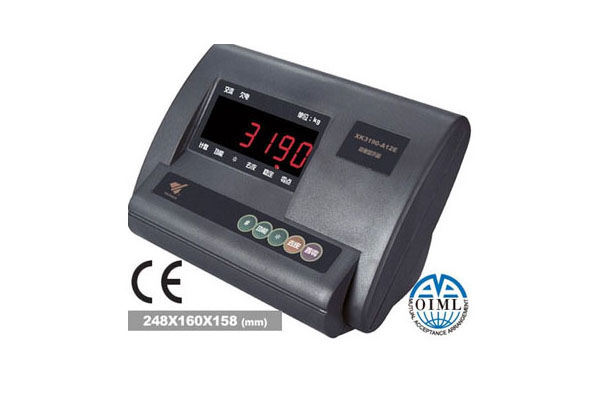

1. Model: XKA12 weighing indicator

2. Accuracy: Level 3, n=3000 Sampling speed: 10 times/second

3. Sensor sensitivity range: 1.5-3mV/V

4. Division value: 1/2/5/10/20/50

5. Large screen display interface (optional): adopts serial output mode, current loop signal, transmission distance ≤ 2000 meters

6. Communication interface (optional): RS232C; Baud rate 1200/2400/4800/9600 optional

7. Power supply: Maintenance free lead-acid battery DC6V/4AH

8. Operating temperature: 0-40 ℃

9. Storage and transportation temperature: -25~55 ℃

10. Relative humidity: ≤ 85% RH
